W2K12 MPIO not seen on third node

Software-based VM-centric and flash-friendly VM storage + free version

Moderators: anton (staff), art (staff), Max (staff), Anatoly (staff)

Locked
gebhard@w-3.de
Posts: 5
Joined: Wed Dec 12, 2012 9:08 am

Fri Mar 01, 2013 10:39 am

Hi,
After setting up a two node cluster (working fine) I added a third node, equally configured, but when I try to mount the ISCSI targets I just see the scsi, not the mpio target.
This only happens on the third node (vs3), MPIO is configured here but not visible in the targets,

thx for any help,

Ralf
Attachments

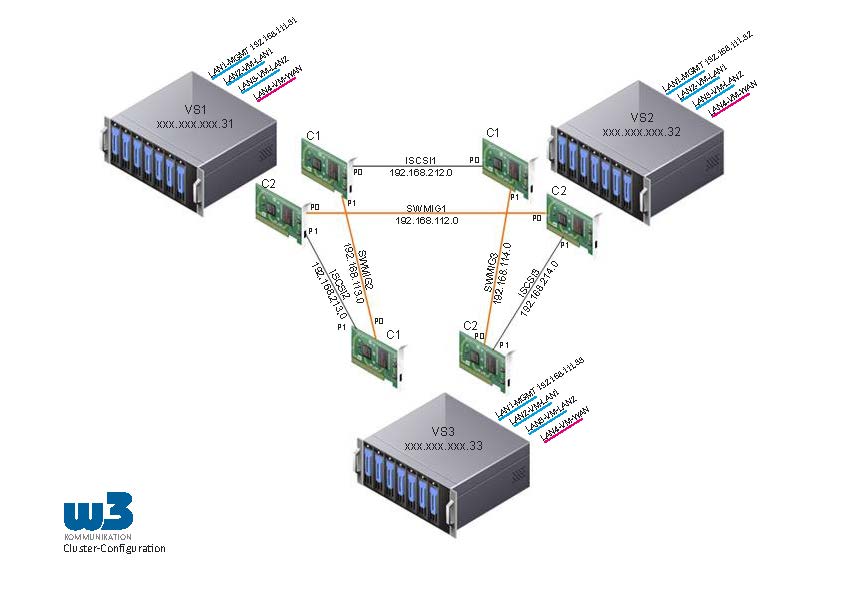

Cluster-Config
Cluster-Config
Top
User avatar
Anatoly (staff)
Staff
Posts: 1675
Joined: Tue Mar 01, 2011 8:28 am
Contact:
Contact Anatoly (staff)

Fri Mar 01, 2013 3:05 pm

May I ask you to provide us with the screenshots that`d illustrated that there is no MPIO, as you have mentioned?

Also, can you confirm that you have added all paths to target in iSCSI initiator?

Thank you
Best regards,
Anatoly Vilchinsky
Global Engineering and Support Manager
www.starwind.com
av@starwind.com
Top
gebhard@w-3.de
Posts: 5
Joined: Wed Dec 12, 2012 9:08 am

Tue Mar 05, 2013 2:32 pm

Anatoly,

yes all paths are connected, e.g. on vs1 connection to itself, to vs2 and to vs3 (firstnode, secondnode and thirdnode). Same on vs2 (connections to vs1 and vs3).
But on vs3 the connections don't show up as mpio paths but as singe scsi (iscsi) volumes, see attached images.
Attachments

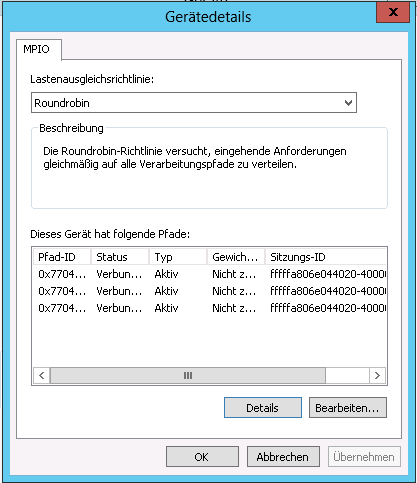

VS1 all mpio paths of CSV (itself and to vs2 and vs3)
VS1 all mpio paths of CSV (itself and to vs2 and vs3)

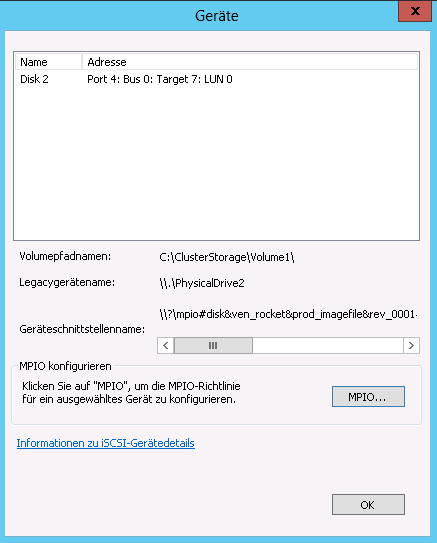

VS1->VS3
VS1->VS3

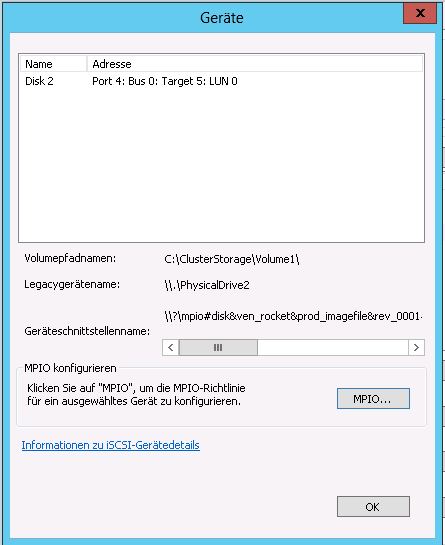

VS1->VS2
VS1->VS2
Top
gebhard@w-3.de
Posts: 5
Joined: Wed Dec 12, 2012 9:08 am

Tue Mar 05, 2013 2:33 pm

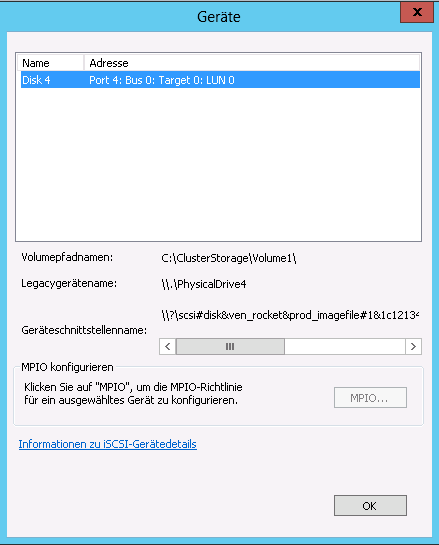

and here vs3 showing only scsi target no mpio target
Attachments
vs3 to vs1 (or to itself) not showing the MPIO
vs3 to vs1 (or to itself) not showing the MPIO
Top
gebhard@w-3.de
Posts: 5
Joined: Wed Dec 12, 2012 9:08 am

Wed Mar 06, 2013 3:52 pm

solved :-)
thx to Max! I simply forgot to enable MPIO in
MPIOcpl ->second tab-> add support for iSCSI devices

Ralf.
Top
User avatar
Max (staff)
Staff
Posts: 533
Joined: Tue Apr 20, 2010 9:03 am

Thu Mar 07, 2013 2:25 pm

You're welcome Ralf!
I'm closing the thread then:)
Max Kolomyeytsev
StarWind Software
