Problem converting P2V when physical disk is beyond 64TB

[yaroslav (staff)]

Hi,

We are still working on the next build. Will keep you posted.

[yaroslav (staff)]

I've just PMed you the build.

[mfuentes]

Sorry Yaroslav, but I cannot find it this time on my PM Inbox

[yaroslav (staff)]

Hi,

Have just resent that link.

[mfuentes]

Hi,

Have just resent that link.

Thanks Yaroslav. I got it and I'm already testing it. The results for now are the following:

W2012R2 (HP): I succeeded creating a valid and mountable VHDX from an small test partition that belongs to a 75TB RAID6 Physical Disk. With that I have just started the same for a deduplicated 16TB partition. It'll take more than 24 hours to complete and I will let you know.

W2016 (Dell 1): I tested an empty 8TB partition that belongs to a 105TB RAID6 and it didn't work. It created the VHDX that could be mounted, but the mounting result was four not one partition with strange sizes and formats not readable. I don't want to test further this machine for now, I will test on the new similar machine (Dell 2) and will let you know as well, but this second one won't be ready for the test until mid next week.

Thanks,
Manuel F.

[yaroslav (staff)]

Thanks for the update. Please keep me posted. Also, if the conversion does not go for some reason or there is any other trouble, collect the logs and share them here.

[mfuentes]

Thanks for the update. Please keep me posted. Also, if the conversion does not go for some reason or there is any other trouble, collect the logs and share them here.

It's taking much longer than expected (3 or 4 times that of Disk2VHD) using just 0.3 Gbps. The size looks good for now and seems it's not re-hydrating the deduplicated data. But the slow speed if maintained, would be a problem for me.

[yaroslav (staff)]

Hi,

Please keep me posted.
We are working also on accelerating the conversion process.

[mfuentes]

Hi Yaroslav

After 5 days, it finished again with no errors but this time the VHDX had again not one (like in the successful small partition K: I did for testing) but several partitions, and none of them valid NTFS replica of the original F: (seen in the first screenshot).

Let me know what we can do

Manuel F.

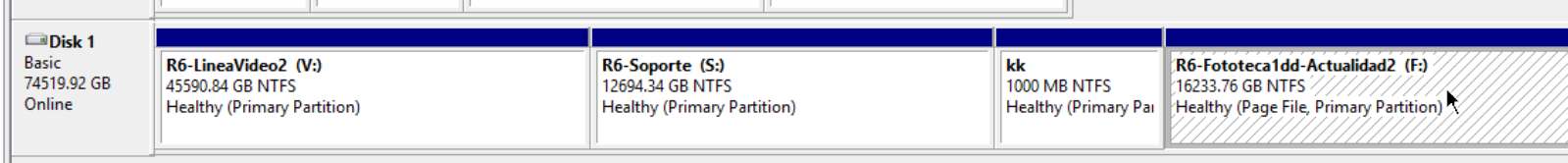

Physical Disk with its partition F: (kk was test)

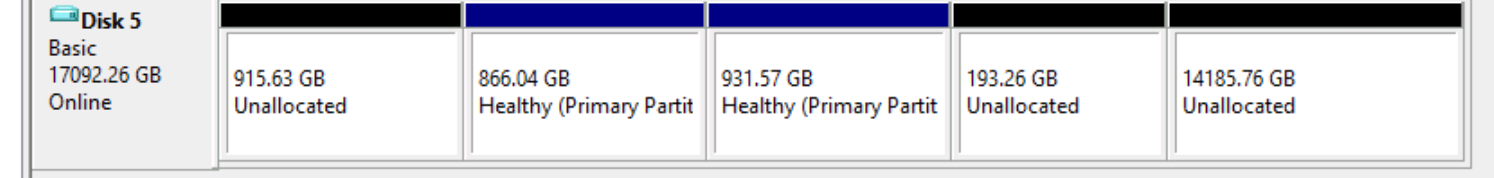

Resulting VHDX mounted


[yaroslav (staff)]

Hi,

We are investigating this incident.

[yaroslav (staff)]

Hi,

Can I have the last conversion log, please? Also, are you using 4k disks?

[mfuentes]

Hi,
If you mean the block size it's the Windows formatting default for an under-16TB partition (F:)
Here is the truncated log. I didn't mention it because there's nothing relevant in those 5 days.

Thank you,
Manuel

The log file name: 'logs\V2V_Log-20210610-134628.log' (PID 19676)
6/10 13:46:28.297 2cd8 Facility ???INFO: CV2V_ConverterApp::InitInstance: SetDllDirectory: C:\Program Files\StarWind Software\StarWind V2V Converter\lib
6/10 13:46:28.297 2cd8 Facility ???INFO: CV2V_ConverterApp::InitInstance: File Version: 9.0.1.245
6/10 13:46:28.313 2cd8 Facility ???INFO: CV2V_ConverterApp::InitInstance: Load language IDR_XML_ENGLISH
6/10 13:46:28.313 2cd8 Facility ???INFO: CV2V_ConverterApp::InitInstance: Set current language English
6/10 13:46:28.313 2cd8 Facility ???INFO: CPS_V2V_Converter::CPS_V2V_Converter: Version MajorVersion 6, MinorVersion 3, BuildNumber 9600
6/10 13:46:28.328 2cd8 Facility ???INFO: WrapperHyperV::WrapperHyperV: LoadLibrary C:\Windows\system32\wbem\wmiutils.dll - 58ac0000
6/10 13:46:28.328 2cd8 Facility ???INFO: WrapperHyperV::WrapperHyperV: LoadLibrary C:\Windows\system32\wbem\wmiutils.dll - 58ac0000
6/10 13:46:32.723 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eTypeP2V
6/10 13:46:35.537 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eVolumeSelect
6/10 13:46:47.818 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eLocationTo
6/10 13:46:51.479 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eFormat
6/10 13:46:55.807 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eOptionsHyperV
6/10 13:47:00.451 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eOutputFile
6/10 13:48:28.265 2cd8 Facility ???INFO: CPPOutputFile::onNext: Out path: \\wss4\j$\wss6-foto-star.vhdx, Out format 10
6/10 13:48:28.265 2cd8 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eConverting
6/10 13:48:28.281 667c Facility ???INFO: CPPConverting::Convert: InConvertType: 1, OutConvertType: 4
6/10 13:48:28.281 667c Facility ???INFO: CPPConverting::ConvertImage: pathInput: 1, pathOutput: \\wss4\j$\wss6-foto-star.vhdx
6/10 13:48:28.281 667c Facility ???INFO: P2V::CreateInputImage: path 1
6/10 13:48:28.281 667c Facility ???INFO: P2V::CreateInputImage: Size 1 - 17430869966848, BytesPerSector - 512
6/10 13:50:03.467 667c Facility ???INFO: CPPConverting::ConvertImage: CreateInputImage: 0
6/10 13:50:03.514 667c Facility ???INFO: CPPConverting::ConvertImage: CreateOutputImage: 0
6/10 13:50:04.389 667c Facility ???INFO: P2V::getSectorsNext: countClusters - 531947952, dwCountBytes - 531947952
6/10 13:51:49.297 667c Facility ???INFO: CVHDXFile::Write: zerro
6/10 13:51:49.768 667c Facility ???INFO: CVHDXFile::Write: zerro

6/15 14:27:53.800 667c Facility ???INFO: CVHDXFile::Write: zerro
6/15 14:27:54.519 667c Facility ???INFO: CVHDXFile::Write: zerro
6/15 14:28:39.614 667c Facility ???INFO: CPPConverting::ConvertImage: Success
6/15 14:28:42.114 667c Facility ???INFO: CPPConverting::Convert: SUCCESSFULLY

[yaroslav (staff)]

Thank you.
We are working on a build that should address this.

[yaroslav (staff)]

Hi,

Here is the build that should convert it https://starwind.my.salesforce.com/sfc/ ... NkwKcjjGmU. Keep me posted.

[mfuentes]

Thanks Yaroslav,
It'll take some days, but for now I can say it looks faster.
Manuel F.
