Activating Windows Repair Mode error?

AJ Bester · Mon Nov 22, 2021 10:17 am

I am experiencing this error when converting a DISK to VHDX.
It is a Windows Server 2012R2 with the latest updates.
I have ignored the error and attempted to attached it to a Hyper-V VM,

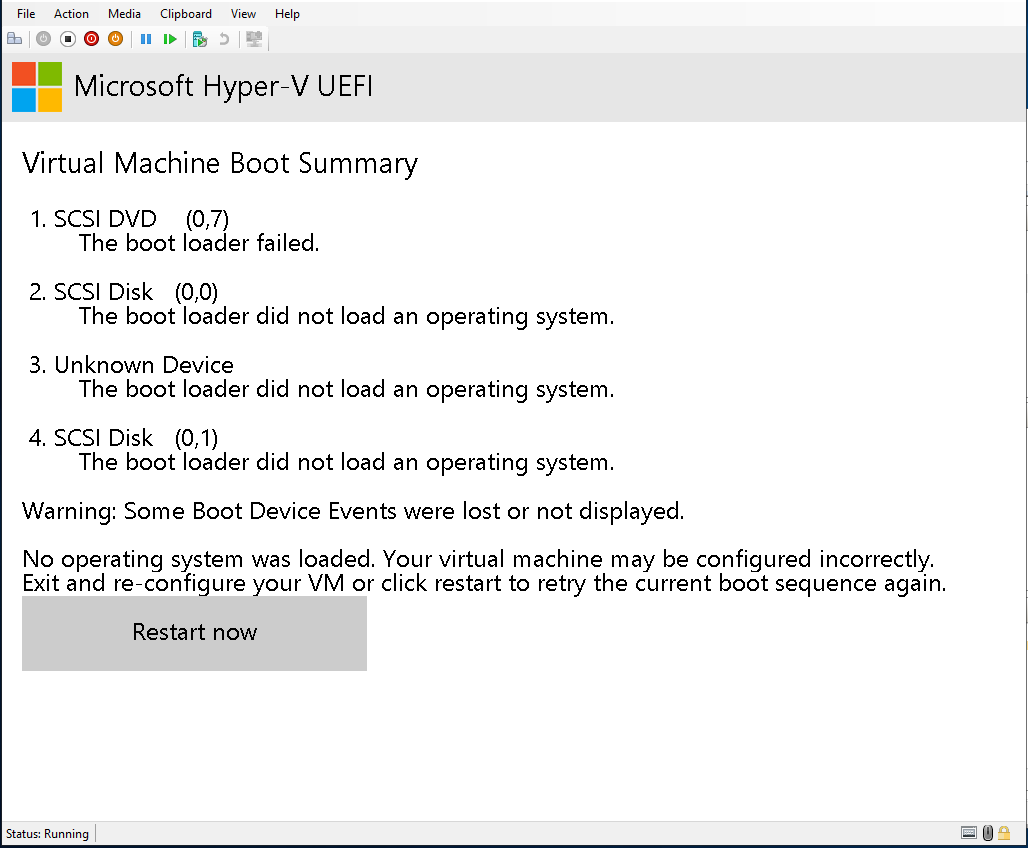

but are unable to boot, Hyper-V reporting that there is no bootable OS found.

I have run out of ideas and have broken three converted files attempting to make it bootable.
It appears there is no RAW boot partition.

How should the Hyper-V VM be configured or what else should I do?

Thank you in advance!

AJ Bester · Mon Nov 22, 2021 10:20 am

Apologies, the images should be viewed from the bottom, up for clarity.

Mon Nov 22, 2021 10:59 am

Hi,

You are booting the VM from the DVD disk.
What was the original server? Was it running on ESXi or was it physical server?

AJ Bester · Tue Nov 23, 2021 7:15 am

Hello Yaroslav,
Thank you for your for you reply.

1. It is a physical server: Windows Server 2012R2
2. I wish to virtualize it to Windows 2019 Hyper-V Server

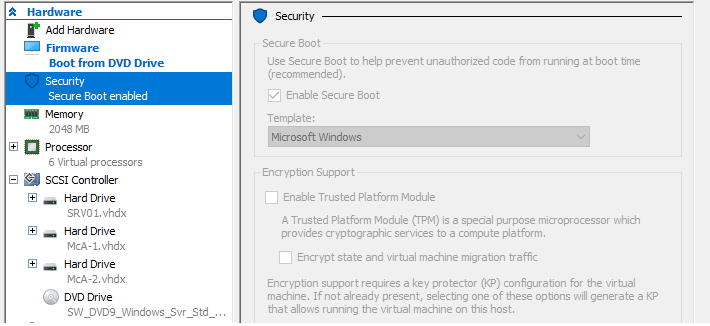

3. I have attached the Server 2012R2 ISO to the VM to use the command prompt utilities if required.

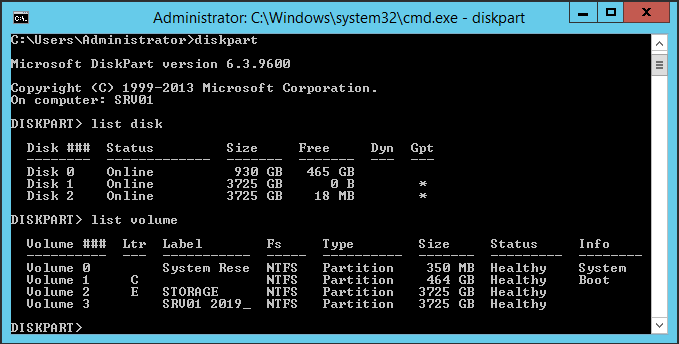

3. The physical server disk info as per image.

Wed Nov 24, 2021 3:09 pm

Hi, please try starting the VM first. If it has problems booting up, see a possible fix here https://social.technet.microsoft.com/Fo ... 638cb356f5.

AJ Bester · Thu Nov 25, 2021 6:07 am

yaroslav (staff) wrote:Hi, please try starting the VM first. If it has problems booting up, see a possible fix here https://social.technet.microsoft.com/Fo ... 638cb356f5.

Hello Yaroslaf,
I followed the links instructions, still faced with this error:

AJ Bester · Thu Nov 25, 2021 6:08 am

yaroslav (staff) wrote:Hi, please try starting the VM first. If it has problems booting up, see a possible fix here https://social.technet.microsoft.com/Fo ... 638cb356f5.

Any idea why the Starwind report the error as in this screenshot?

AJ Bester · Thu Nov 25, 2021 6:37 am

AJ Bester wrote:
yaroslav (staff) wrote:Hi, please try starting the VM first. If it has problems booting up, see a possible fix here https://social.technet.microsoft.com/Fo ... 638cb356f5.
Hello Yaroslaf,
I followed the links instructions, still faced with this error:

This fixed it:
https://docs.microsoft.com/en-US/troubl ... 0xc000000e

Fri Nov 26, 2021 8:23 am

Thanks for your update and sharing your knowledge.
